In recent months, we have received increasing inquiries for larger enclosures from customers working in machine and system engineering or in the renewable energy sector, particularly solar and wind power. Our customers need durable and spacious enclosures to install and protect their electronic components.
Our new MBI-L enclosures, where “L” stands for “Large”, meet all these requirements:
- XXL-sized enclosures that offer more space for innovation and creativity
- Robust and durable, ideal for demanding industrial environments
- Guaranteed availability and 100% quality-controlled production at our factory in Kirchlengern, Germany

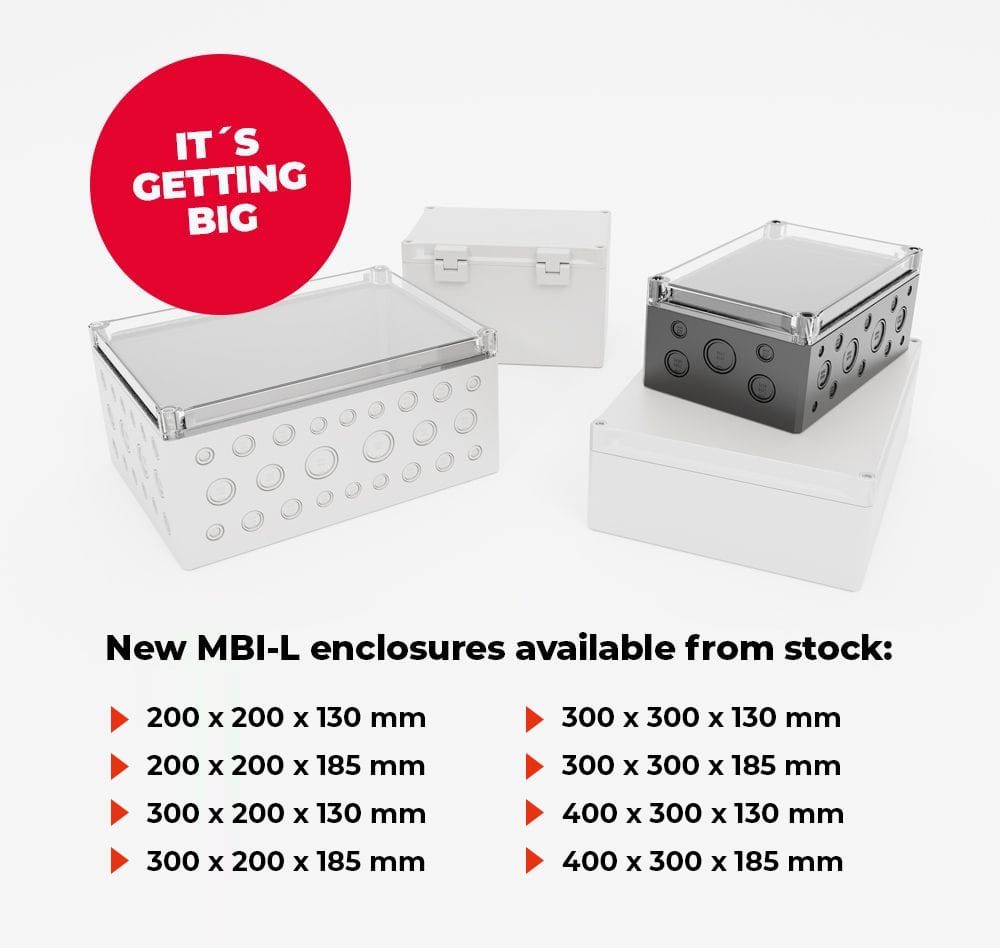

Which new sizes are available?
We have expanded our popular MBI range with four new enclosure sizes in color grey RAL 7035. In addition, two new enclosure sizes are available in elegant black RAL 9005. All products are available from stock.
| Grey RAL 7035 | Length x Width x Height | Technical drawings | |||||
| MBI-L-PC 302013 | 300mm x 200mm x 130mm | M | MK | O | OK | ||
| MBI-L-PC 302019 | 300mm x 200mm x 185mm | M | MK | O | OK | ||
| MBI-L-PC 403013 | 400mm x 300mm x 130mm | M | MK | O | OK | ||
| MBI-L-PC 403019 | 400mm x 300mm x 185mm | M | MK | O | OK | ||
| Black RAL 9005 | Length x Width x Height | Technical drawings | |||||
| MBI-L-PC BK 302013 | 300mm x 200mm x 130mm | M | MK | O | OK | ||
| MBI-L-PC BK 403019 | 400mm x 300mm x 185mm | M | MK | O | OK | ||
KEY FEATURES
- Systematic focus on requirements in industrial installations
- Suitable for use in challenging outdoor applications
- Enclosure bases with metric pre-formed knockouts or plain side walls
- Variety of metric knockouts for cable entries
- Knockouts at the backside of the enclosure base for cable entry from the rear
- Improved knockout design for a defined positioning of the knockout tool
- Multiple fixing points in the base of the enclosure
- Low weight compared to enclosures made of aluminum, stainless steel or sheet metal
- High stability thanks to optimized wall thicknesses
- Individual side designs with special mould inserts
- Corrosion-free plastic cover screws
- Various fastening options on walls or machines
- Completely recyclable 🌱
TECHNICAL SPECIFICATIONS
- Protection class IP66
- Seamlessly foamed-in 2-component polyurethane gasket
- Impact resistance IK08 (DIN EN 50102:1997-09)
- Glass-fibre reinforced polycarbonate
- UV-resistant (UL 746C F1)
- Self-extinguishing (UL 94 V0) in color grey and black
- Flammability classification UL 94 V2 with transparent cover
Efficient production and first-class quality
Our MBI enclosures are entirely produced at our factory in Kirchlengern, Germany. From material purchasing to injection molding and final assembly, every process is carried out under one roof. This enables us to ensure efficient production in excellent quality and guarantee our customers reliable delivery times.
Suitable accessories for functional upgrades
To adapt the functionality of the new MBI-L enclosures to your needs, we offer an interesting range of accessories.
LEVEL ADAPTER MBI-L
These adapters made of glass fibre-reinforced polycarbonate allow flexible installation of components at different levels in the enclosure base using a mounting plate. They are also excellent for installing front panels. The fastening element can be inserted at any height of the adapter bar to ensure a perfect position.
EXTERNAL HINGES MBI-L
These durable hinges have been specially developed for the new MBI-L enclosures and allow quick and safe access for maintenance work and inspections. Thanks to the hinges, the enclosure cover is securely attached to the base and cannot be lost.
Like the enclosures, MBI-L hinges are made of glass fiber reinforced polycarbonate. The material is UV-stable, absolutely corrosion-resistant and self-extinguishing. The enclosure's protection class (IP66) is maintained with mounted hinges.
Further information on accessories, data sheets and technical drawings can be found on our website.
